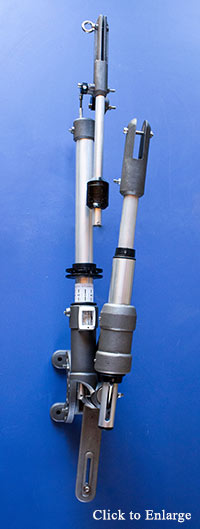

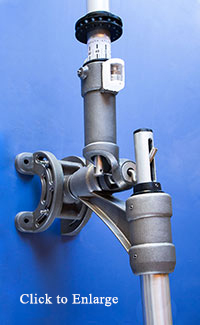

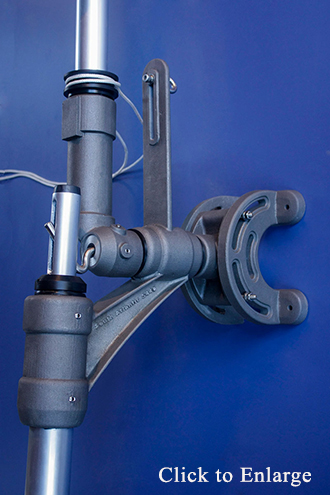

Self Steering Wind Vane S - 440
How Does our Wind vane Self Steering Work?
The servo-pendulum system consists of a [sensor-vane] which transmits the change in the wind direction to the wind-vane rudder. The steering force of the servo oar is transmitted to the main rudder by two lines. The rudder is attached to the tiller by [lines] which move the tiller or wheel that steer the sail boat.
South Atlantic Wind-vane S 440
- 1 - Self Steering Wind-vane South Atlantic S-440
- 2 Purchase in Advance Offer
- 3 Wind Vane Self Steering S-440 - Preice
- 4 Examples
- 5 Windvane Installation Photos
- 6 Videos
- 7 Windvane Extras
- 8 Services & More
- 9 Repairs
- Fixed Mast Steps
- Boom Brake
Advantages of our
Self Steering Wind vane
" Adjustable windvane (for strong or light wind)
" Vane fixing in central position
" Adjustable power transmission
" Easy to start and stop operating
" Lift up swinging rudder, + - 170 degrees
" Protection against overloading
"Autopilot option: a pin fitting for an Autohelm or Simrad cockpit autopilot is provided as standard on the windvane arm
" Detachable auxiliary rudder
Adaptability of our self steering gear
"Length of air vane mast, pendulum shaft and tiller arm customised to fit each individual boat.
Strength and Durability
South Atlantic, uses a 100% sea water resistant alloy.
South Atlantic grants a lifetime guarantee against damage in the material (aluminium).
" Sea water resistant aluminium,
" POM bearings.
" Servo rudder, Wood coated
" 6 mm polycarbonate vane
"We use sliding bearings: they need no upkeep and run softly.
Demand for spare bearings is almost man-existing!
ca. 20 Kilos
Series S-440: up to 12 m / 40 ft
Series S-440: up to 10.000 kg
Wind vane and Autopilot
Almost 100% of self steering wind vane buyers had an automatic pilot on board before the purchase! " The windvane is used 90% of the times after both systems have been installed! " When a ship sails with sails set, the wind steers it better!
Save 5% on every order!
|S - 440 Basic (FOB) 1550 EUR||S 440 Plus (FOB) 1710 EUR|
|South Atlantic S 440 Basic include:
* Standard Mounting.
* 1 Air vane.
* 1 blade.
|South Atlantic S 440 Plus include:
*Standard Mounting, 2 Air vane
* 2 Rudder, Berings set (body and shaft)
* 1 complete push rod and push rod connectors
* Chain/pin for the chain, Tools (Allem keys), User guide
Terms: 30 % deposit
with order. Full payment before shipment. Read More|
|Offers valid until 31- 12- 2019 *.|
